Stock Designs Available


iLAB America Brochure 8 1/2 x 11 PDF (file size 2,078KB)

Stock designs can save clients many months of lost time to market since the bulk of the development is completed. This can translate into increased sales revenues by reaching the market faster, and reduce your risk with proven, mass production ready designs. These designs are usually minimally changed to match the clients current product styling, dimensions, and feature set.

We also specialize in designs using AKM Semiconductor DACs, ADCs, CODECs, USB, and Sample Rate Convereters.

Stock designs listed below typically only require a power source and/or enclosure to complete the product. PCB, software and testing is complete.

16 Channel Power Amplifier ( 1,280 Watts RMS total )

stock design available(file size 346KB)

High Performance

The MCA89 is a 16 channel power amplifier designed to meet the demands of custom installers who need more power , features and reliability. Each of the 16 channels are capable of delivering 80WRMS/CH. The MCA89 utilizes the latest technical advancements to produce reliable , clean power for today’s demanding applications.

Control of all functions of the MCA89 are via RS232 interface, with USB update of all firmware. Each unit is uniquely addressable.

Audio Inputs ( 9 stereo inputs total )
9 stereo Audio channels with individual input level trim. RS232 controlled 8 audio zone outputs with individual volume, bass, treble and 3 band EQ.

Key Features

• 16 channels , 80WRMS/CH, 1280 watts RMS max  total
• Triple fan cooled , front chassis air draw
• Rack mount option
• 8 zone preamplifier control for volume, bass, treble, 3 band EQ
• Audio Bus , Paging and Phone / Doorbell Mute modes

16 Channel Power Amplifier ( 640 Watts RMS total )

stock design available(file size 320KB)

High Performance

The MCA16 is a 16 channel power amplifier designed to meet the demands of custom installers who need more power , features and reliability. Each of the 16 channels are capable of delivering 80WRMS/CH. The MCA16 utilizes the latest technical advancements to produce reliable , clean power for today’s demanding applications.

Control of all functions of the MCA16 are via RS232 interface, with USB update of all firmware. Each unit is uniquely addressable.

Audio Inputs ( 8 stereo inputs total )

Key Features

• 16 channels , 80WRMS/CH, 1280 watts RMS max  total
• Triple fan cooled , front chassis air draw
• Rack mount option

8 Zone Stereo Audio Preamp and Video Switcher

stock design available(file size 207KB)

The SWAV-8 features eight analog stereo audio/composite video zone outputs and eight analog stereo audio/composite video source inputs.

The A8 can be expanded into a minimum of 64 zones by cascading multiple units together ( 8 units ) .
All analog audio inputs allow independent multi-band equalization for each zone.

All analog audio inputs have independent rear panel input gain control, and all zone audio outputs have independent digital volume, bass, treble, 3-band EQ control via RS-232 control.

Key Features

• 8 composite video/digital (S/PDIF) audio output zones
• 8 analog stereo audio source inputs
• 8 analog stereo audio output zones
• 8 composite video/digital (S/PDIF) audio output zones
• RS-232 port for control and bi-directional communication
• Rack mount option

6 Zone Component and Composite Video Switcher

stock design available(file size 209KB)

The SWVC-6 provides the ability to switch six component video and 6 composite video (or digital audio) sources to six different zones.
It also provides six CAT5 output ports which provide the ability to distribute component video and digital audio over CAT5 up to 1,000 ft. Compatible with most standard component video/SPDIF over CAT5 receivers, including our CAT5-RX
By cascading multiple units together, you can connect up to 36 zones. In addition,  the SWVC-6 provides status feedback via two-way communication.
Signal sensing on all inputs for communicating status to control systems.

Key Features

• 6 composite video/digital (S/PDIF) audio output zones
• 6 component video source inputs
• 6 component video output zones
• 6 composite video/digital (S/PDIF) audio inputs
• 6 Component video / SPDIF over CAT5 zone output connectors
• RS-232 port for control and bi-directional communication
• Rack mount option

Component Video and S/PDIF over CAT5 Receiver

stock design available(file size 83KB)

The CAT5-RX provides video/audio over CAT5 reception at distances of up to 1,000ft. The outputs provide the ability to distribute component video and digital audio over CAT5. While the on-board S/PDIF to analog stereo audio converter supplies stereo analog audio.

Compatible with most standard component video/SPDIF over CAT5 receivers, including our CAT5-RX

Key Features

• Composite video output
• Digital Audio (S/PDIF) audio output
• Analog Stereo Audio output
• Component video output
• CAT5 receiver input

• Production quantities available under license
• HD Radio SIS ID3 decoding (station name, frequency, song title/artist name/album name/genre)
• AM/FM/HD Radio for USA (HD Radio (IBOC) and analog AM/FM )
• High-bandwidth AGC and IF filter conversion for analog and IBOC broadcasts.
• AM/FM/HD Radio AM, HD Radio FM band switching
• Main (MPS)/ Supplemental Audio Channel switching
• Digital / Analog / Analog/Digital Blend / Auto signal reception modes
• User presets (maximum 20 )
• Input frequency range (FM) (MHz) : 87.9 to 107.9 Input frequency range (AM) (kHz) : 530 to 1710 IF band width (FM) (kHz) : 400 (IBOC), 180 (analog FM) IF band width (AM) (kHz) : 180 (IBOC), 180 (analog AM)
• EEPROM based presets memory backup
• Presets on boot for parametric equalization
• S/PDIF output Keypad interface
• Bass/treble/loudness contour control
• Balance control
• Electronic volume up/down control
• Headphone sense for power amplifier on/off
• Infra-red remote / serial data control input
• External Audio interface ( Analog or I2S )
• Multiple Display formats can be accommodated, LCD char, LCD/VFD 128*64 / 240*64 graphic
• Real-time clock with power failure battery backup input
• LCD dim/normal adjustment

• Dolby Digital 5.1 , Dolby Pro Logic, MPEG Surround decoding· Processing modes include Movie, Music , Stereo, Dolby Digital/Dolby Pro Logic, and advanced bass management

• Remote control and asynchronous serial I/O option ( i.e USB control upgrade option )
• Automatic audio input detection selects processing modes
• 96KHz / 24 bit audio
• 3 audio inputs ( 1 optical , 1 coaxial , 1 stereo analog )

• 2 channel Dolby Digital 5.1 , Dolby Pro Logic, Virtual Surround decoding
• Stereo headphone amplifier with volume control ( 85mW per channel into 32 ohms )
• Stereo speaker amplifier with volume control ( 2W per channel into 4 ohms )
• Stereo line level audio output
• Automatic audio input detection selects Dolby processing modes
• 20 bit audio in/out
• 3 audio inputs ( 1 optical , 1 coaxial , 1 stereo analog )

• Dolby Digital 5.1 , Dolby Pro Logic, DTS, 6.1 and 7.1 Surround decoding ,Pro logic 2 and QSurround 7.1 ready
• Over 23 processing modes including enhanced music , bypass modes and advanced bass management
• Remote control and asynchronous serial I/O option
• Automatic audio input detection selects processing modes· Software upgradeable ( microcontroller and DSP )
• 96KHz / 24 bit audio
• 5 audio inputs ( 1 optical , 2 coaxial , 2 stereo analog )
• Video switching module available ( optional )

• Dolby Digital 5.1 , Dolby Pro Logic, DTS Surround decoding, Pro Logic 2 ready
• Over 23 processing modes including enhanced music , bypass modes and advanced bass management
• Remote control and asynchronous serial I/O option
• Automatic audio input detection selects processing modes· Software upgradeable ( microcontroller and DSP )
• 96KHz / 24 bit audio
• 5 audio inputs ( 1 optical , 2 coaxial , 2 stereo analog )
• Video switching module available ( optional )

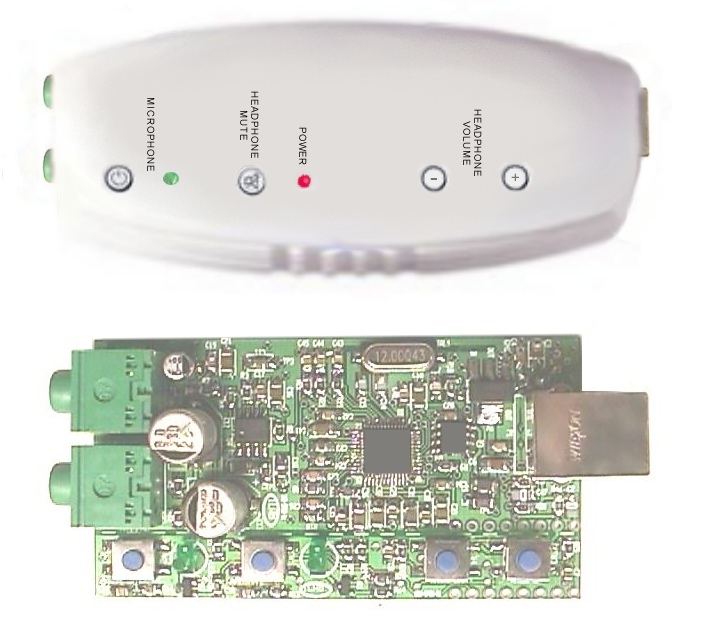

• USB digital stereo, full-duplex enables two-way digital sound with PC or Gaming Console
• USB-IF Certifiable , can customize USB device and string descriptor
• USB audio controller , audio class encoder/decoder
• USB serial interface engine , USB transceiver, 2 end points (FIFO)
• Automatic detection using standard Windows 2000, Windows XP drivers
• Standard 16 bit USB audio , 8Khz/11.025KHz/22.05KHz/44.1KHz/48KHz
• Built-in stereo speaker amplifier ( 2W/CH @ 4 ohms , higher output power optional )
• Built-in microphone preamplifier
• Built-in stereo headphone amplifier ( 85mW per channel into 32 ohms )
• Mute , Volume control operates PC volume control window
• No sound card required for PC

• USB digital stereo, full-duplex enables two-way digital sound with PC or Gaming Console
• USB-IF Certifiable , can customize USB device and string descriptor
• USB audio controller , audio class encoder/decoder
• USB serial interface engine , USB transceiver, 2 end points (FIFO)
• Automatic detection using standard Windows 2000, Windows XP drivers
• Standard 16 bit USB audio , 8Khz/11.025KHz/22.05KHz/44.1KHz/48KHz
• Built-in microphone preamplifier
• Built-in stereo headphone amplifier ( 200mW per channel into 8 ohms )
• Mute , Volume control operates PC volume control window
• No sound card required for PC
• No external power supply needed

• Automatically powers your A/V system on/off
• Advanced AC power noise filter
• Surge and overload protection
• 8 outlets plus 1 current sense outlet and 1 continuously powered outlet
• DC in and out control triggers
• Optional under/over AC line voltage indicators

• 16 channel multiroom amplifier ( 16 x 85W = 1360W ) stock design available



• 12 channel multiroom amplifier ( 12 x 85W = 1020W ) stock design available


• Premium 5 channel audio power amplifier ( 5 x 200W = 1,000W ) stock design available


• 5 channel audio power amplifier ( 5 x 200W = 1,000W ) stock design available


• Premium 3 channel audio power amplifier ( 3 x 200W = 600W ) stock design available


• 5 channel audio graphic equalizer w/preamplifier stock design available


• 3 channel audio graphic equalizer w/preamplifier stock design available
